108 U type mechanical seal

产品简介：

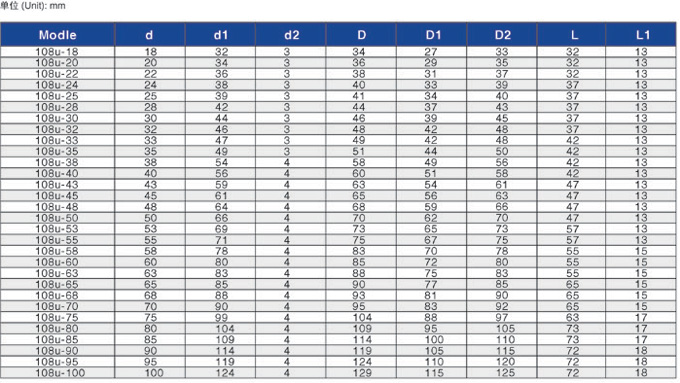

108 u is a built-in type, unbalanced type. Type 108 size conforms to ISO3069 standard. This series is a typical corrosion resistant pump with a single spring unbalanced mechanical seal. It can be assembled with various materials and end face to meet the demand of strong corrosion condition.

Operating parameters:
Pressure: 0 ~ 0.8Mpa, temperature: -10 DEG C to 150 DEG C, maximum speed: 3000r/min, medium: sulfuric acid, concentrated base

Material combination:

Name	Code
Ceramic graphite	T-M
Cemented carbide	W-W
Carbide graphite	W-M
