Products Name:Model M7N mechanical seal

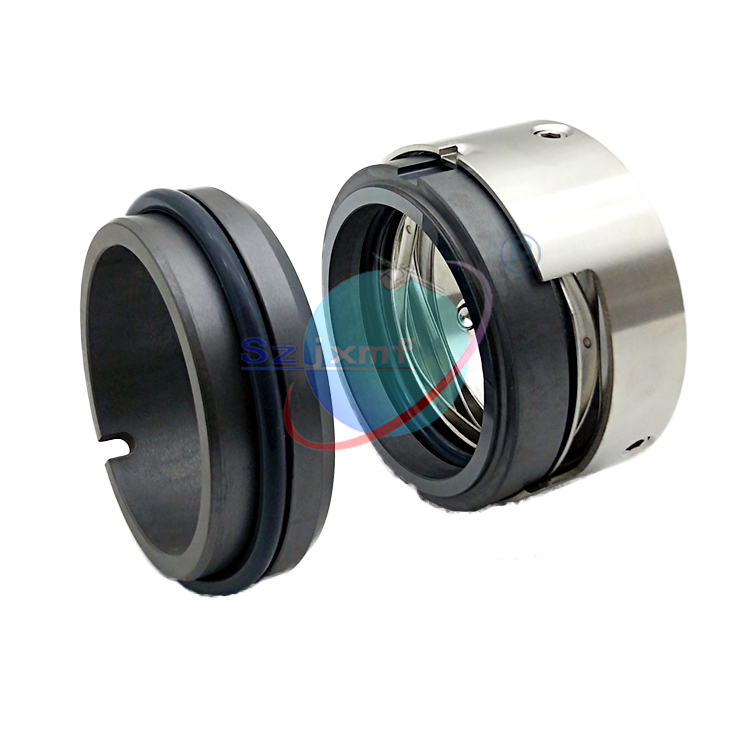

Products Details:Single end / non balance / arbitrary rotation / DIN24960 standard, M7N series is widely used, interchangeability is strong, sealing ring is not tight embedded, easy to replace. The pushing ring is jammed by the driving belt to prevent the spring from falling off. The static ring can be limited, and the spring stroke is limited to avoid excessive wear of the carbon ring.
Operating parameters:

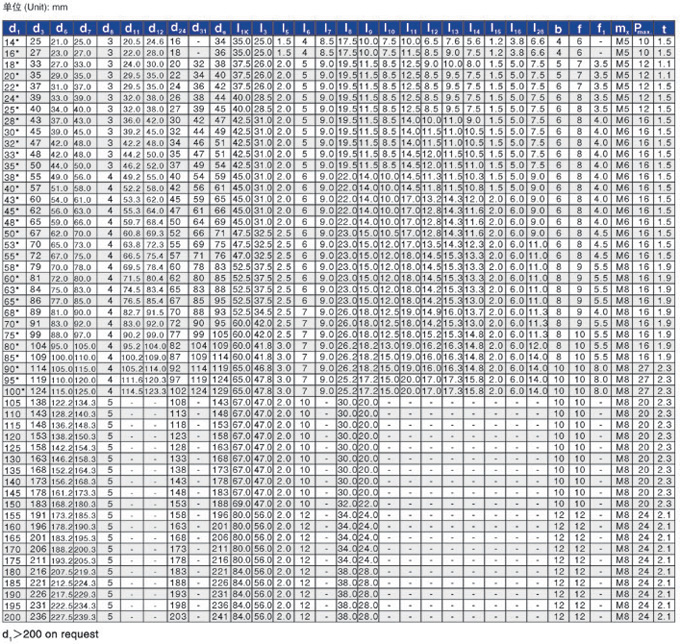

d1=14…200mm 0.55”…8”，p1=16(25)bar 230(360)PSI，t=-50…220℃，-58F…430o，Vg=20m/s 66ft/s，Axial thrust:
| d1 up to 25 mm: | ±1.0mm |
| d128 to 63 mm: | ±1.5mm |
| d1 65 mm and above: | ±2.0mm |
M74N multi spring structure

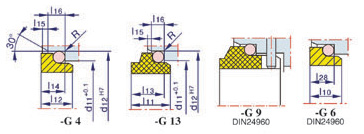

Stationary ring
Torque transfer
|
d1>100mm 由四只螺钉拧入凹坑。 |
|
|
|
|
M7F thread pump d1 max. 100mm M74F multi spring threaded pump d1 =14…200mm |
M7 S2 key drive d1 max. 100mm M74 S2 multiple spring key drive d1 =28…200mm |
Mosaic structure for M78N rotary ring d1 =18…100mm t max. 180℃ |
