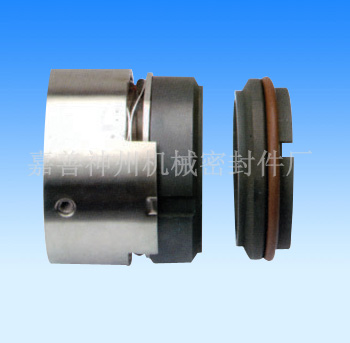

Products Name:Model 119B mechanical seal

Products Details:The series is a multi spring mechanical seal pump typical, the seal with DIN24960, ISO3069.API610 and GB6556 standard, the standard is widely used in the balanced mechanical seal, allowing the use of various materials and surface combination, with full range of industrial requirements.

Operating parameters:
Seal chamber pressure: 0 ~ 2.5Mpa; the seal cavity temperature: -30 to 180 DEG C; speed: 3000r/min; medium: water, sewage, oil and weak corrosive liquid will.
